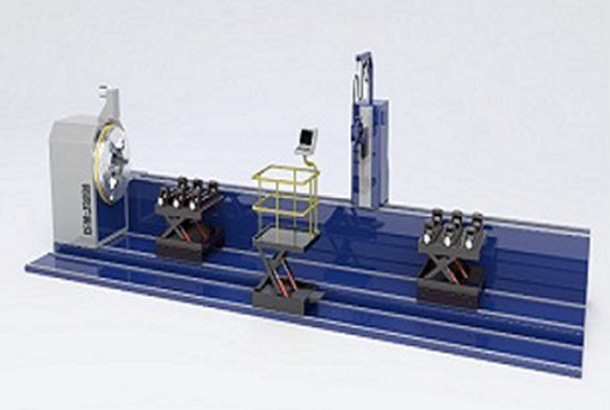

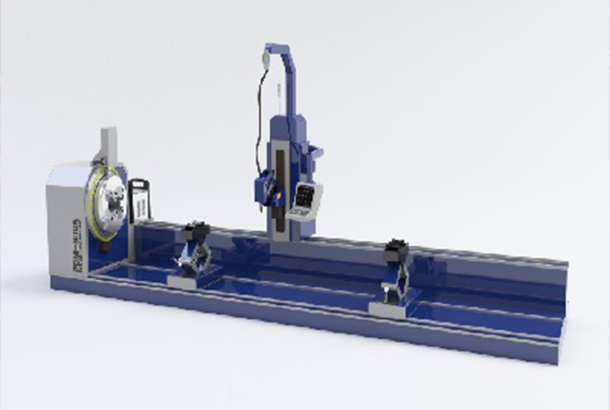

PCM-C800 제품 이미지

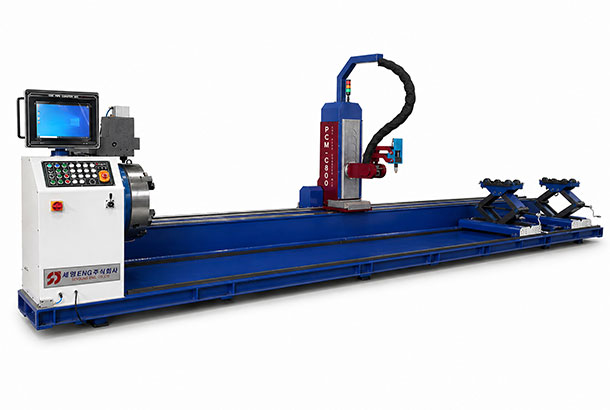

PCM-C800

제품 영상 보기
· 제품특징

- 윈도우 환경에서 개발되어 접근성 및 A/S 편리

- 플라즈마 출력부의 앞 / 뒤 이동에 따라 형상 절단 소재의 Loading / Unloading의 편리성

- 터치 패널 제어 시스템을 이용하여 기존 CAM에서 작업하던 방식에서 작업 모델별 패턴을 이용한 데이터 입력 방식으로 작업 레시피 설정 용이

· 제품상세 설명

- PC 17" TFT LCD Display

- 별도 가공없이 접합 용접을 할 수 있는 Chuck Type 파이프 절단 장비

- 조선, 해양, 건설 등 다분야 파이프 형상 절단에 사용

Basic Specification for Equipment
Pipe Diameter to be Proceed 25A~800A
Pipe Thickness 1mm~25mm
Actual Cutting Length 6,000mm
Max. Weight of Pipe 2,000kg
Machine Length(L) 7,100mm
Machine Main Unit Height(H) 1,710mm
Machine Main Unit Width(W) 2,290mm
Machine Weight 6,000kg
Components for Equipment
Pipe Chuck 4 jaw
(1) Diameter of Chuck 830mm
(2) Chucking System Manual / Auto(AC Motor)
Main Machine 1 set
Operation Panel 1 set
Electric Main Panel 1 set
Plasma Power System Hypertherm PMX 105A 1 set
The part of Plasma Torch 1 set
Utilities Specification
Main Power Supply 380VAC, 3Ø 50/60Hz 70Amp Max
Air Air Line for Plasma Supporting
Oxygen Gas(Option) Gas(Oxygen, Nitrogen) 0.5~0.6 Mpa
Grounding Installation
Control Axis
Total Numbers of Axis 6 Axis
Control System Servo Motor
Torch Stand Box(X1 Axis) / Driving System Servo Driver & Motor
Torch Stand Box(X1 Axis) / Moving Length in Front of Chuck 5,700mm
Main Lift Manual Lift: 2 Sets
Torch Rotation(R2 Axis) / Driving System Servo Driver & Motor
Torch Rotation(R2 Axis) / Range of Bevel Angle Left / Right : ±45deg
Torch Link(R3 Axis) / Driving System Servo Driver & Motor
Torch Link(R3 Axis) / Range of Bevel Angle Plasma : ±45deg / Front / Back Bevel Angle : ±34deg
Effective Range for Plasma / Driving System Servo Driver & Motor
Effective Range for Plasma / Up/Down Stroke 900mm
Chuck Rotation(R1 Axis) / Driving System Servo Driver & Motor
Chuck Rotation(R1 Axis) / R.P.M. Case by Condition(Pipe Thickness & Size)
Torch Stand Box Front/Back(X2 Axis) / Driving System Servo Driver & Motor
Torch Stand Box Front/Back(X2 Axis) / Front/Back Stroke 450mm
Software
GUI Software for PC 1 Copy
Specification for Computer System PC : BENECOM BNC-B17T-GA
CPU : Intel 2GHz(2M Cache)
LCD Panel : 17" TFT LCD(1280*1024)
Memory : DDR3-4GB
Storage : SSD 256GB
